GDShader Reader

A specialized Obsidian plugin for viewing Godot Engine .gdshader files with syntax highlighting and integrated visual references.

Features

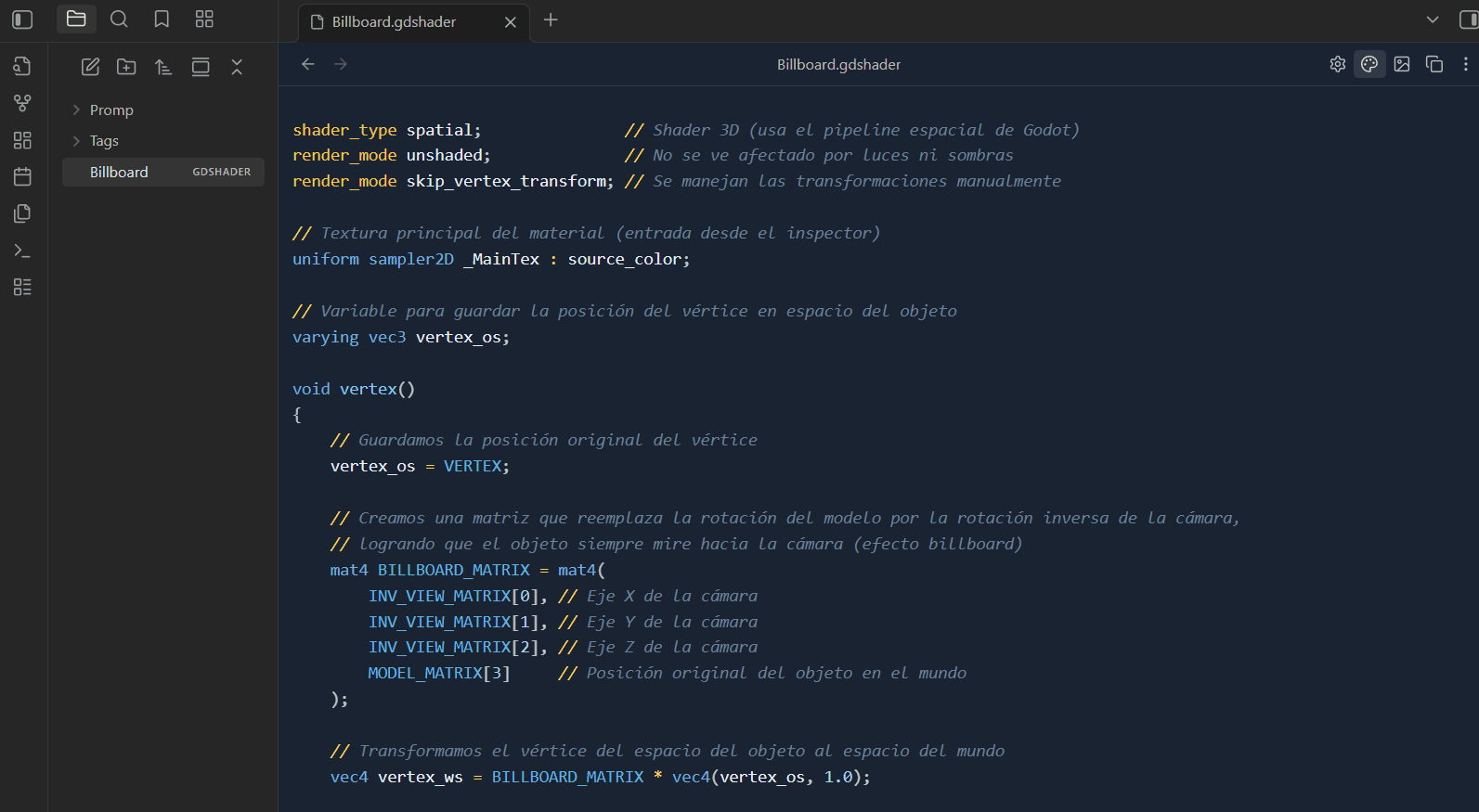

📝 Shader Viewer

• Custom syntax highlighting for Godot shaders
• Highlights keywords, directives (shader_type, render_mode), built-ins, operators
• Line numbers and code selection

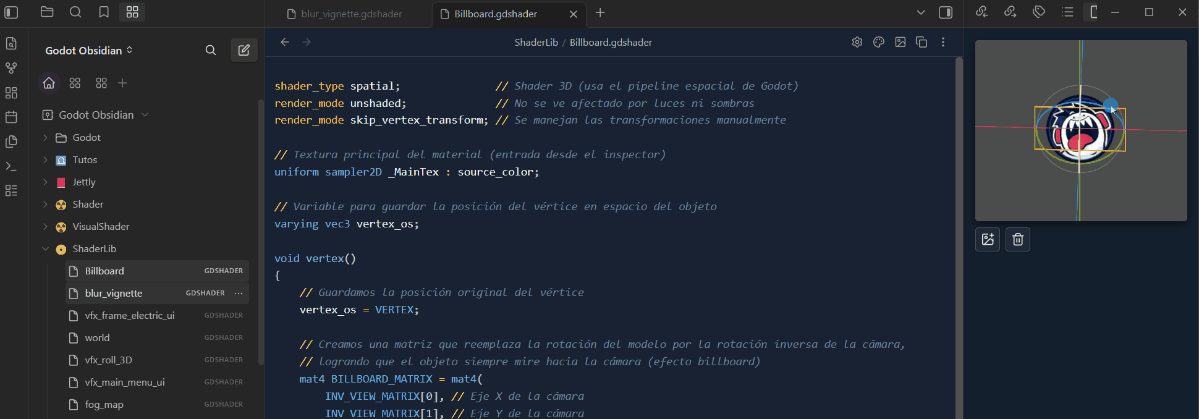

🖼️ Visual Reference Panel

• Attach images or videos as references for your shaders
• Supported formats: png, jpg, gif, mp4, webm, mov, etc.
• Video controls: play/pause, loop, audio toggle, speed control (0.25x-2x)
• Auto-opens when viewing shaders, auto-closes with other files
• Drag & drop support

🎨 Customizable Themes

• 10 pre-built color presets (Argentina, Godot, Monokai, Dracula, Nord, etc.)
• 12 customizable color properties
• Quick theme selector in toolbar

⚙️ Storage Options

• Global folder: Store all references in one location
• Relative folder: Keep references next to each shader

Installation

From Obsidian

1. Open Settings → Community Plugins
2. Search "GDShader Reader"
3. Install and Enable

Manual

1. Download latest release
2. Extract to <vault>/.obsidian/plugins/gdshader-reader/
3. Reload Obsidian and enable in settings

Usage

1. Open a .gdshader file → Automatic syntax highlighting
2. Add reference → Click upload button 📷 or drag & drop image/video
3. Customize theme → Use palette button 🎨 in toolbar
4. Control videos → Use play/pause, loop, audio, and speed buttons

Configuration

Access via Settings → GDShader Reader:

• Choose storage location (global/relative)
• Select color preset or customize individual colors
• Adjust image panel background

Author

Gabo Salcedo - www.GaboSalcedo.com

x - @Gabo_Salcedo_Z

License

MIT
